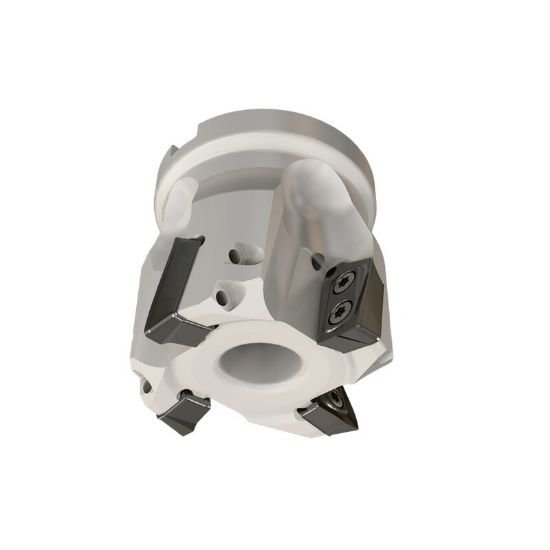

Picture of Iscar HP F90AT D4.00-5-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 5 Flute

Iscar HP F90AT D4.00-5-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 5 Flute

Part Number: ISC3104330 ISO: HP F90AT D4.00-5-1.50-19 ANSI:HP F90AT D4.00-5-1.50-19
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012146
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3104330 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7003394
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 5
Tool Dia 4.0000 101.60MM
Insert Size Ic 19
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.7090
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
