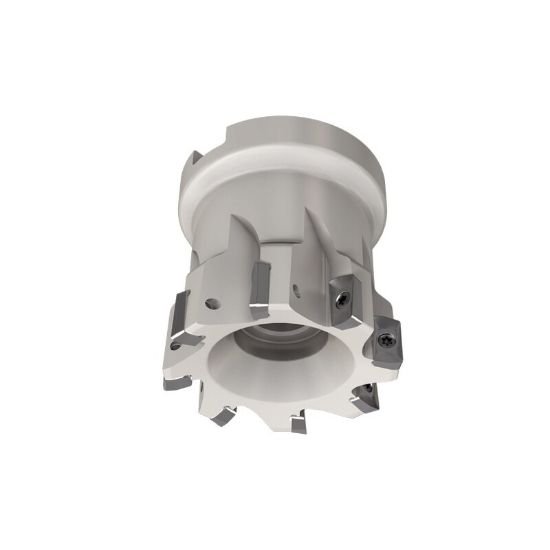

Picture of Iscar HP F90AN D2.5-12-1.0-07 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 12 Flute

Iscar HP F90AN D2.5-12-1.0-07 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 12 Flute

Part Number: ISC3104164 ISO: HP F90AN D2.5-12-1.0-07 ANSI:HP F90AN D2.5-12-1.0-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012118
Vendor: Sussex Tool and Supply
$927.00
ISCAR 3104164 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.7500 44.45MM
Coolant Thru Non Coolant
Flutes/Inserts 12
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 7
Cut Dia Min 2.5000 63.50MM - 2-1/2
Coolant Type External
Depth Of Cut Max 0.3030
Cut Dia Max 2.5000 63.50MM - 2-1/2
Insert Screw 7002000
Cutting Edge Angle 90.0°
