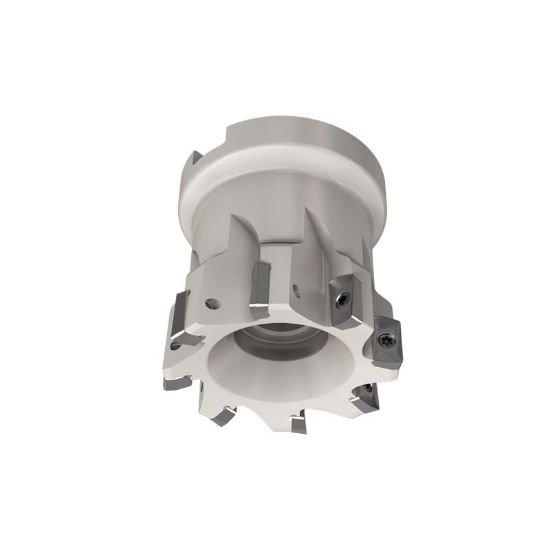

Picture of Iscar HP F90AN D1.5-10-.75-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 10 Flute

Iscar HP F90AN D1.5-10-.75-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 10 Flute

Part Number: ISC3103822 ISO: HP F90AN D1.5-10-.75-07 ANSI:HP F90AN D1.5-10-.75-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012094
Vendor: Sussex Tool and Supply
$701.76

Description

ISCAR 3103822 Parallelogram 90.0°, Face Mill SHELL0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7003603
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 10
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3030
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
