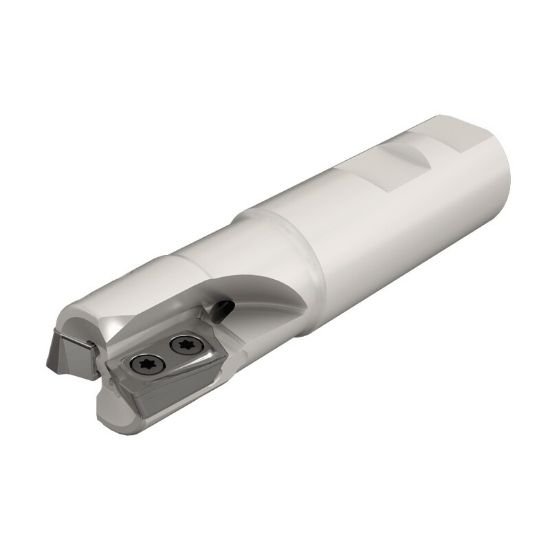

Picture of Iscar HP E90AT-D1.50-3-W1.25-19 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

Iscar HP E90AT-D1.50-3-W1.25-19 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

Part Number: ISC3104318 ISO: HP E90AT-D1.50-3-W1.25-19 ANSI:HP E90AT-D1.50-3-W1.25-19
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012144
Vendor: Sussex Tool and Supply
$504.00

Description

ISCAR 3104318 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002511
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 19
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.7090
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 6.00°
Materials & Finish
Tool Material Steel
