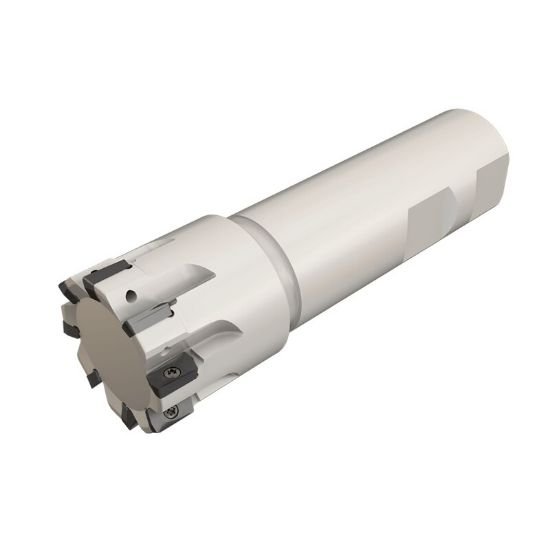

Picture of Iscar HP E90AN-D1.5-7-W1.0-7 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 7 Flute

Iscar HP E90AN-D1.5-7-W1.0-7 Milling Cutter 90.0° 1.500 Diameter Weldon 1.000 4.000 OAL 7 Flute

Part Number: ISC3103916 ISO: HP E90AN-D1.5-7-W1.0-7 ANSI:HP E90AN-D1.5-7-W1.0-7
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012106

Description

ISCAR 3103916 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7004475
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 7
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3030
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
