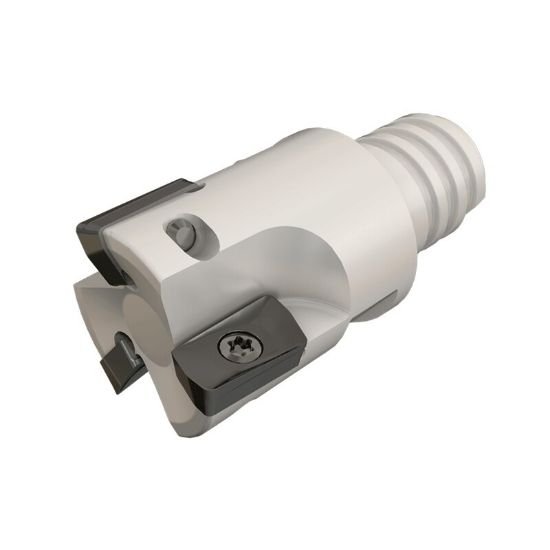

Picture of Iscar HP E90AN-D.75-5-mmT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 5 Flute

Iscar HP E90AN-D.75-5-mmT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 5 Flute

Part Number: ISC3104240 ISO: HP E90AN-D.75-5-MMT12 ANSI:HP E90AN-D.75-5-MMT12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012131
Vendor: Sussex Tool and Supply
$460.80

Description

ISCAR 3104240 Parallelogram 90.0°, End Mill Thread On T12 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 1.3900 35.31MM
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3030
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 2.40°
Materials & Finish
Tool Material Steel
