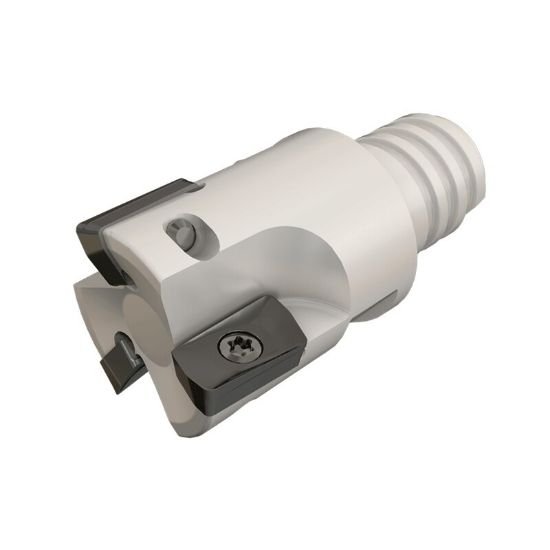

Picture of Iscar HP E90AN-D.62-4-mmT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 4 Flute

Iscar HP E90AN-D.62-4-mmT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 4 Flute

Part Number: ISC3104238 ISO: HP E90AN-D.62-4-MMT10 ANSI:HP E90AN-D.62-4-MMT10
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012130
Vendor: Sussex Tool and Supply
$385.92

Description

ISCAR 3104238 Parallelogram 90.0°, End Mill Thread On T10 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7003603
Dimensions & Sizing
Overall Length 1.2100 30.73MM
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 3.20°
Materials & Finish
Tool Material Steel
