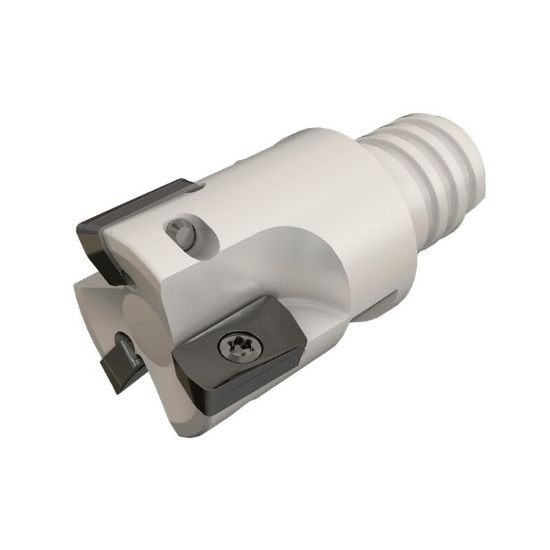

Picture of Iscar HP E90AN-D.62-3-mmT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 3 Flute

Iscar HP E90AN-D.62-3-mmT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 3 Flute

Part Number: ISC3103914 ISO: HP E90AN-D.62-3-MMT10 ANSI:HP E90AN-D.62-3-MMT10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012105
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3103914 Parallelogram 90.0°, End Mill Thread On T10 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size T10
Overall Length 1.2100 30.73MM
Coolant Thru Non Coolant
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 7
Cut Dia Min 0.6250 15.88MM - 5/8
Coolant Type External
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Insert Screw 7003603
Cutting Edge Angle 90.0°
Max Ramp Angle 3.20°
