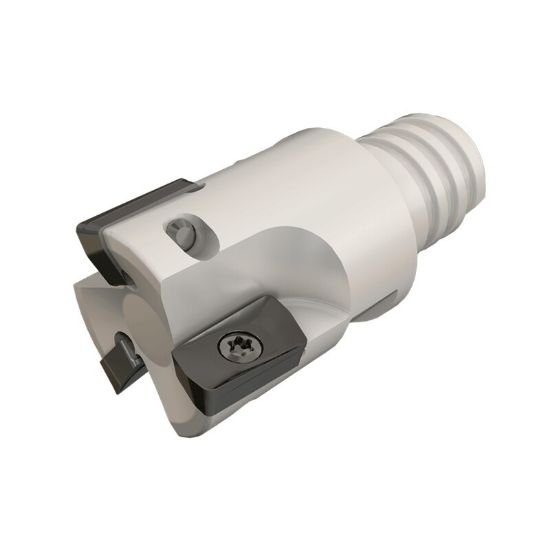

Picture of Iscar HP E90AN-D.50-2-mmT08 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.960 OAL 2 Flute

Iscar HP E90AN-D.50-2-mmT08 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.960 OAL 2 Flute

Part Number: ISC3103913 ISO: HP E90AN-D.50-2-MMT08 ANSI:HP E90AN-D.50-2-MMT08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012104
Vendor: Sussex Tool and Supply
$302.40
ISCAR 3103913 Parallelogram 90.0°, End Mill Thread On T08 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size T08
Overall Length 0.9600 24.38MM
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 7
Cut Dia Min 0.5000 12.70MM - 1/2
Coolant Type External
Depth Of Cut Max 0.3030
Cut Dia Max 0.5000 12.70MM - 1/2
Insert Screw 7003603
Cutting Edge Angle 90.0°
Max Ramp Angle 2.70°
