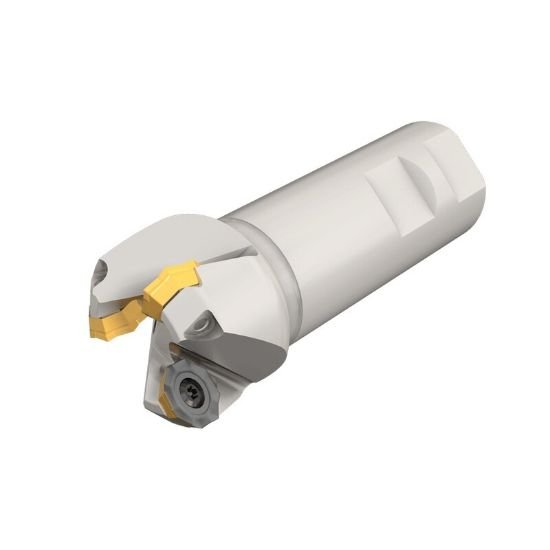

Picture of Iscar HOE D1.50-04-W1.50-R06 Milling Cutter 42.0° 1.500 Diameter Weldon 1.500 4.550 OAL 4 Flute

Iscar HOE D1.50-04-W1.50-R06 Milling Cutter 42.0° 1.500 Diameter Weldon 1.500 4.550 OAL 4 Flute

Part Number: ISC3106607 ISO: HOE D1.50-04-W1.50-R06 ANSI:HOE D1.50-04-W1.50-R06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012505
Vendor: Sussex Tool and Supply
$504.00

Description

ISCAR 3106607 Multi 42.0°, Button End Mill Weldon 1.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill, Button
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style OE, RE, SE
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7001973
Dimensions & Sizing
Overall Length 4.5500 115.57MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 76
Geometry & Angles
Cutting Edge Angle 42.0°
Performance & Capacity
Cut Dia Min 1.4000 35.56MM
Depth Of Cut Max 0.2160
Cut Dia Max 1.8700 47.50MM
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
