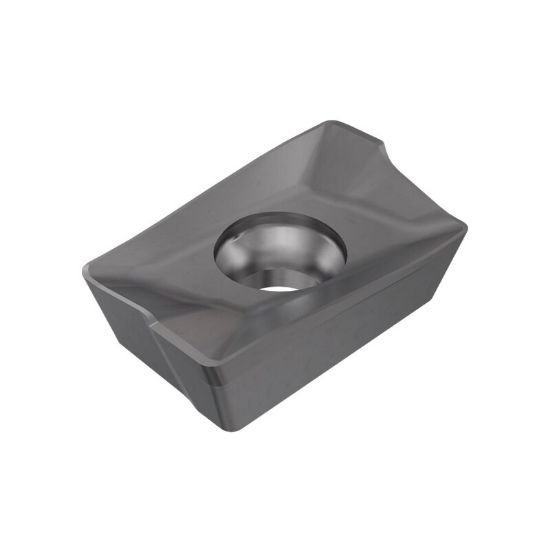

Picture of Iscar HM90APKT100325PDR IC328 Milling Insert Paralelagram 0.098 Corner Radius TiCN

Iscar HM90APKT100325PDR IC328 Milling Insert Paralelagram 0.098 Corner Radius TiCN

Part Number: ISC5603493 ISO: HM90APKT100325PDR IC328 ANSI:HM90APKT100325PDR IC328

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1010423
Vendor: Sussex Tool and Supply
$15.95
This product has a minimum quantity of 10
ISCAR 5603493 Parallelogram Insert Positive TiCN A tough substrate with PVD coating, suitable for a wide range of applications on steel and stainless steel at low to medium speeds and medium to high feeds. The grade is recommended for interrupted cuts and machining under unstable conditions.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, High Temp, <40HRC Steel
Coating TICN
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.0980 2.49MM
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Grade IC328
Insert Type Positive
Insert Size Ic 10
Insert Fits Parallelogram
Depth Of Cut Max 0.3150
