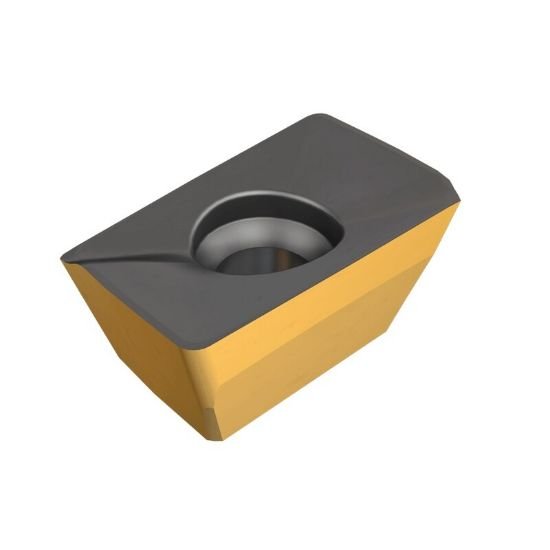

Picture of Iscar HM90ADCT1505PDR-CF IC380 Milling Insert Paralelagram 0.031 Corner Radius TiCN + TiN

Iscar HM90ADCT1505PDR-CF IC380 Milling Insert Paralelagram 0.031 Corner Radius TiCN + TiN

Part Number: ISC5607278 ISO: HM90ADCT1505PDR-CF IC380 ANSI:HM90ADCT1505PDR-CF IC380

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1010331
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
ISCAR 5607278 Parallelogram Insert Positive TiCN + TiN A tough submicron grain size substrate with SUMOTEC PVD coated grade. Used for machining Titanium and heat resistant alloys at medium to high cutting speeds. Excellent resistance to built-up edge, mechanical and thermal shock resistance.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <55HRC Steel, High Temp
Coating TiCN + TiN
Insert/Tool INSERT
Insert Application Roughing, Semi Finishing
Corner Radius 0.0310 0.79MM
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Grade IC380
Insert Type Positive
Insert Size Ic 15
Insert Fits Parallelogram
Depth Of Cut Max 0.5510
