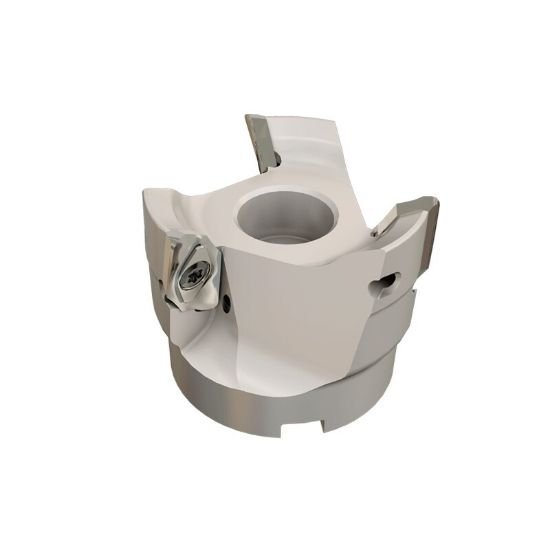

Picture of Iscar HM90 FAL-D5.00-1.50-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.250 OAL 5 Flute

Iscar HM90 FAL-D5.00-1.50-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.250 OAL 5 Flute

Part Number: ISC3102773 ISO: HM90 FAL-D5.00-1.50-16 ANSI:HM90 FAL-D5.00-1.50-16
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011973
Vendor: Sussex Tool and Supply
$1,296.00

Description

ISCAR 3102773 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002377
Dimensions & Sizing
Overall Length 2.2500 57.15MM
Flutes/Inserts 5
Tool Dia 5.0000 127.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.6220
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
