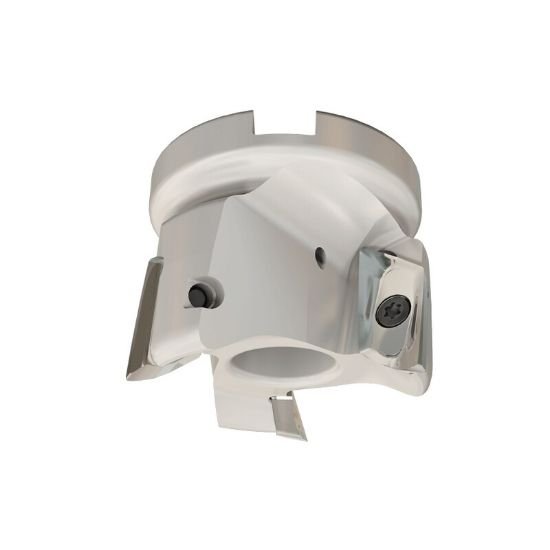

Picture of Iscar HM90 FAL-D4.00-1.50-22 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 4 Flute

Iscar HM90 FAL-D4.00-1.50-22 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 4 Flute

Part Number: ISC3103549

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012060
Vendor: Sussex Tool and Supply
$1,070.00
Products specifications
Attribute name Attribute value
Insert Application Roughing, Semi Finishing
Cutter Type Face Mill
Cutting Edge Angle 90.0°
Depth Of Cut Max 0.8070
Overall Length 2.0000 50.80MM
Insert Size (IC) 22
Machine Side (Toolpost) SHELL1.5000
Insert Type Positive
Insert Screw 7002791
Insert Style AP
Type of Tool Face / Shell Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Parallelogram
Machine Side (Toolpost) Connection Type Face Mill/Shell Mill
Flutes Or Inserts 4
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Tool Diameter 4.0000 101.60MM
Cut Diameter Min 4.0000 101.60MM
Coolant Thru Thru Coolant
Cut Diameter Max 4.0000 101.60MM
Made In USA No
Coolant Type Through Hole
