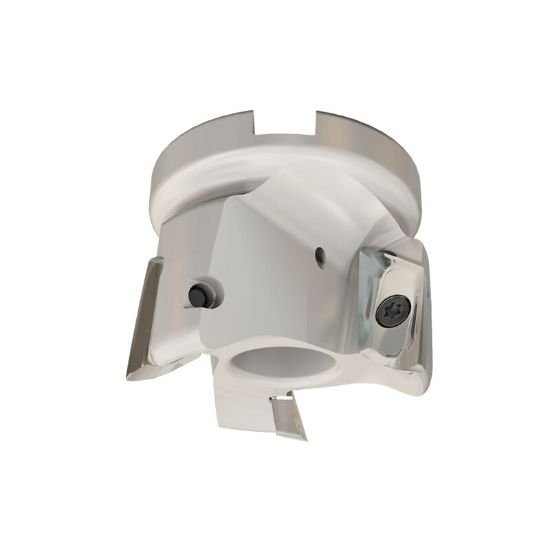

Picture of Iscar HM90 FAL-D3.00-1.00-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

Iscar HM90 FAL-D3.00-1.00-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

Part Number: ISC3103548 ISO: HM90 FAL-D3.00-1.00-22 ANSI:HM90 FAL-D3.00-1.00-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012059
Vendor: Sussex Tool and Supply
$891.00
ISCAR 3103548 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cut Rating Graphite, Aluminum
Mach Side Connection Size 1.0000 25.40MM
Overall Length 2.0000 50.80MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 3.0000 76.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 22
Cut Dia Min 3.0000 76.20MM
Coolant Type Through Hole
Depth Of Cut Max 0.8070
Cut Dia Max 3.0000 76.20MM
Insert Screw 7002791
Cutting Edge Angle 90.0°
