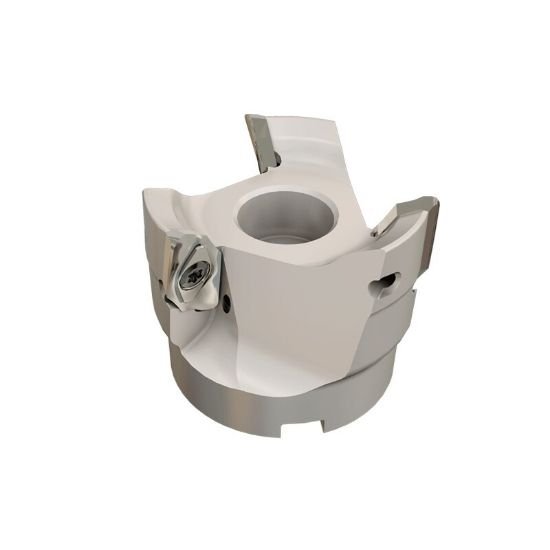

Picture of Iscar HM90 FAL-D2.50-1.00-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

Iscar HM90 FAL-D2.50-1.00-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

Part Number: ISC3102770 ISO: HM90 FAL-D2.50-1.00-16 ANSI:HM90 FAL-D2.50-1.00-16
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$751.68
SKU: 1011970

Description

ISCAR 3102770 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002791
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 3
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.6220
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
