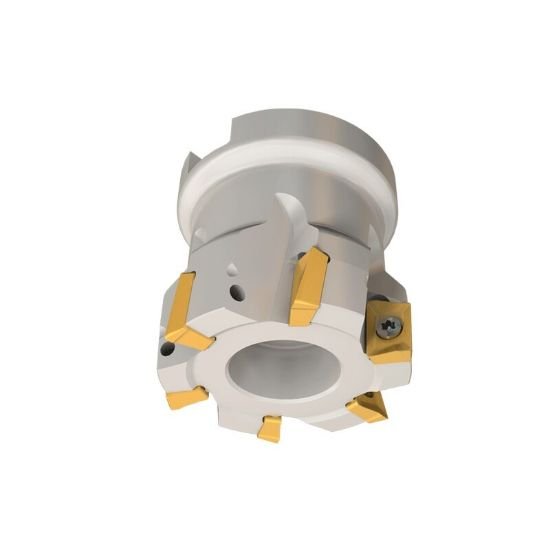

Picture of Iscar HM90 F90AP D2.00-6-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

Iscar HM90 F90AP D2.00-6-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

Part Number: ISC3102078 ISO: HM90 F90AP D2.00-6-.75 ANSI:HM90 F90AP D2.00-6-.75
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011886
Vendor: Sussex Tool and Supply
$697.92

Description

ISCAR 3102078 Parallelogram 90.0°, Face Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 6
Tool Dia 2.0000 50.80MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.3900
Cut Dia Max 2.0000 50.80MM
Materials & Finish
Tool Material Steel
