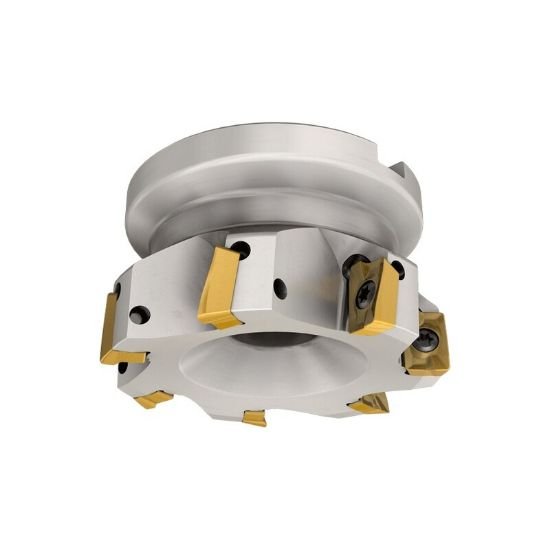

Picture of Iscar HM90 F90A D4.00-8-1.50 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Iscar HM90 F90A D4.00-8-1.50 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Part Number: ISC3102121 ISO: HM90 F90A D4.00-8-1.50 ANSI:HM90 F90A D4.00-8-1.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011908
Vendor: Sussex Tool and Supply
$1,010.00
ISCAR 3102121 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 4.0000 101.60MM
Coolant Type External
Depth Of Cut Max 0.5600
Cut Dia Max 4.0000 101.60MM
Insert Screw 7000402
Cutting Edge Angle 90.0°
