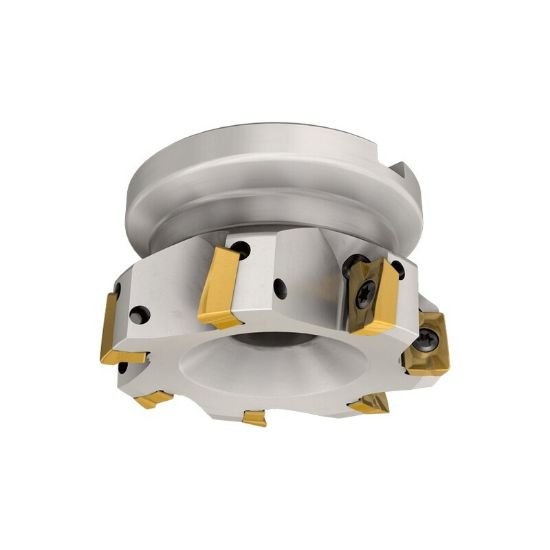

Picture of Iscar HM90 F90A D3.00-7-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

Iscar HM90 F90A D3.00-7-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

Part Number: ISC3102120 ISO: HM90 F90A D3.00-7-1.00 ANSI:HM90 F90A D3.00-7-1.00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011907
Vendor: Sussex Tool and Supply
$917.76

Description

ISCAR 3102120 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000402
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.5600
Cut Dia Max 3.0000 76.20MM
Materials & Finish
Tool Material Steel
