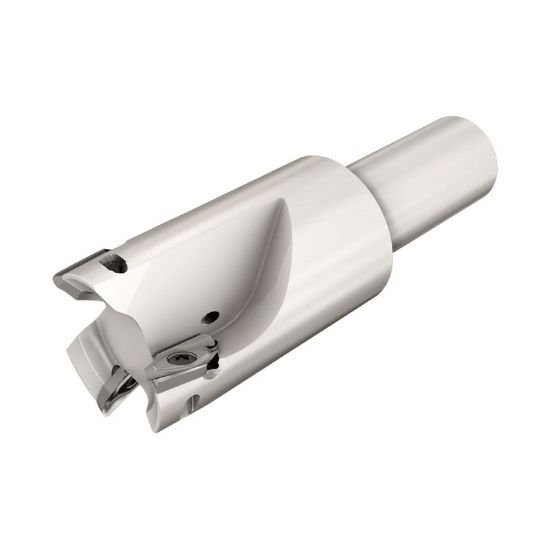

Picture of Iscar HM90 EAL-D125-C125L8-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

Iscar HM90 EAL-D125-C125L8-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

Part Number: ISC3102765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011968
Vendor: Sussex Tool and Supply
$700.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Max Ramp Angle 22.40°
Insert Application Roughing, Semi Finishing
Cutter Type Face Mill
Cutting Edge Angle 90.0°
Depth Of Cut Max 0.6220
Overall Length 8.0000 203.20MM
Insert Size (IC) 16
Machine Side (Toolpost) WELDON1.2500
Insert Type Positive
Insert Screw 7002791
Insert Style AP
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Parallelogram
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 2
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.2500 31.75MM - 1-1/4
Cut Diameter Min 1.2500 31.75MM - 1-1/4
Coolant Thru Thru Coolant
Cut Diameter Max 1.2500 31.75MM - 1-1/4
Made In USA No
Coolant Type Through Hole
