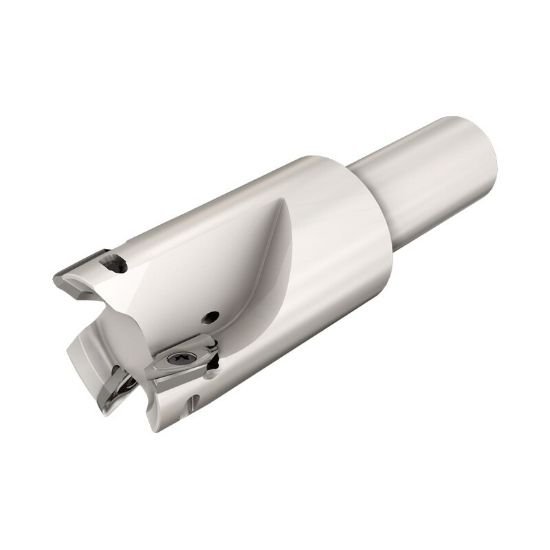

Picture of Iscar HM90 EAL-D125-C125L6-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 6.000 OAL 2 Flute

Iscar HM90 EAL-D125-C125L6-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 6.000 OAL 2 Flute

Part Number: ISC3181009 ISO: HM90 EAL-D125-C125L6-16 ANSI:HM90 EAL-D125-C125L6-16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012739
Vendor: Sussex Tool and Supply
$655.68

Description

ISCAR 3181009 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7005890
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6100
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 22.40°
Materials & Finish
Tool Material Steel
