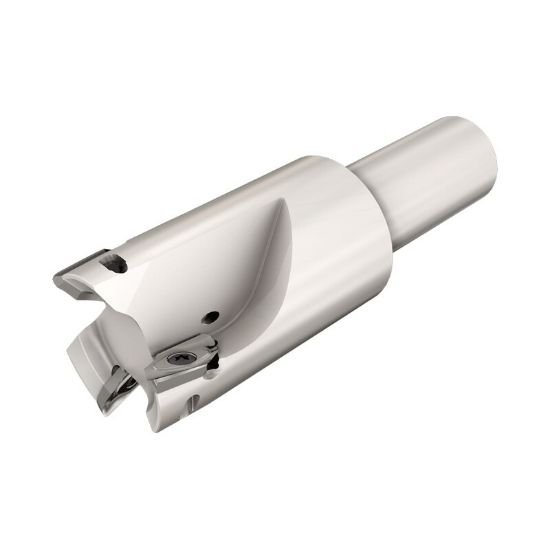

Picture of Iscar HM90 EAL-D100-C100L5-16 Milling Cutter 90.0° 1.000 Diameter Round 1.000 5.000 OAL 1 Flute

Iscar HM90 EAL-D100-C100L5-16 Milling Cutter 90.0° 1.000 Diameter Round 1.000 5.000 OAL 1 Flute

Part Number: ISC3181016 ISO: HM90 EAL-D100-C100L5-16 ANSI:HM90 EAL-D100-C100L5-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012741
Vendor: Sussex Tool and Supply
$482.00
ISCAR 3181016 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.0000 127.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AL
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 16
Cut Dia Min 1.0000 25.40MM
Coolant Type Through Hole
Depth Of Cut Max 0.6100
Cut Dia Max 1.0000 25.40MM
Insert Screw 7006264
Cutting Edge Angle 90.0°
Max Ramp Angle 25.90°
