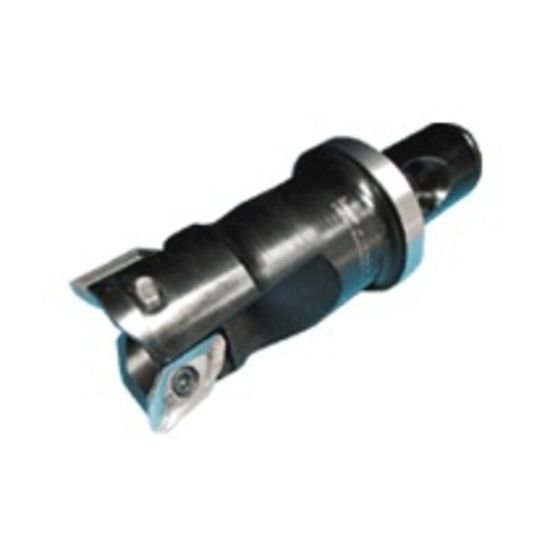

Picture of Iscar HM90 EAL-D1.5-L3.5-CF4-16 Milling Cutter 90.0° 1.500 Diameter Clickfit 1.574 5.500 OAL 2 Flute

Iscar HM90 EAL-D1.5-L3.5-CF4-16 Milling Cutter 90.0° 1.500 Diameter Clickfit 1.574 5.500 OAL 2 Flute

Part Number: ISC3102761

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011966
Vendor: Sussex Tool and Supply
$772.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.5748 40.00MM
Max Ramp Angle 16.90°
Insert Application Roughing, Semi Finishing
Cutter Type End Mill
Cutting Edge Angle 90.0°
Depth Of Cut Max 0.6220
Overall Length 5.5000 139.70MM
Insert Size (IC) 16
Machine Side (Toolpost) CF4
Insert Type Positive
Insert Screw 7002281
Insert Style AP
Type of Tool Quick Change
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Parallelogram
Machine Side (Toolpost) Connection Type Click Fit
Flutes Or Inserts 2
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.5748 40.00MM
Tool Diameter 1.5000 38.10MM - 1-1/2
Cut Diameter Min 1.5000 38.10MM - 1-1/2
Coolant Thru Thru Coolant
Cut Diameter Max 1.5000 38.10MM - 1-1/2
Made In USA No
Coolant Type Through Hole
