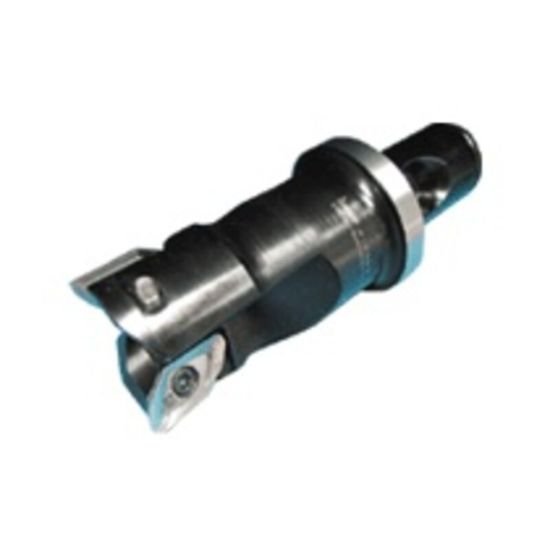

Picture of Iscar HM90 EAL-D1.25-L3.5-CF416 Milling Cutter 90.0° 1.250 Diameter Clickfit 1.574 5.500 OAL 2 Flute

Iscar HM90 EAL-D1.25-L3.5-CF416 Milling Cutter 90.0° 1.250 Diameter Clickfit 1.574 5.500 OAL 2 Flute

Part Number: ISC3102760 ISO: HM90 EAL-D1.25-L3.5-CF416 ANSI:HM90 EAL-D1.25-L3.5-CF416
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011965
Vendor: Sussex Tool and Supply
$734.40

Description

ISCAR 3102760 Parallelogram 90.0°, End Mill Quick Change CF4 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002281
Dimensions & Sizing
Overall Length 5.5000 139.70MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Rating Graphite, Aluminum
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6220
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 22.40°
Materials & Finish
Tool Material Steel
