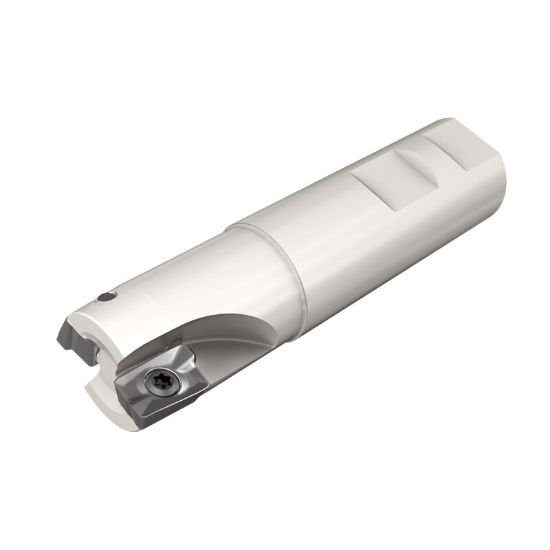

Picture of Iscar HM90 E90AD-D1.50-3W1.50XL Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 7.750 OAL 3 Flute

Iscar HM90 E90AD-D1.50-3W1.50XL Milling Cutter 90.0° 1.500 Diameter Weldon 1.500 7.750 OAL 3 Flute

Part Number: ISC3102154 ISO: HM90 E90AD-D1.50-3W1.50XL ANSI:HM90 E90AD-D1.50-3W1.50XL
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011922
Vendor: Sussex Tool and Supply
$496.32

Description

ISCAR 3102154 Parallelogram 90.0°, End Mill End Mill Weldon 1.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 7.7500 196.85MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5600
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
