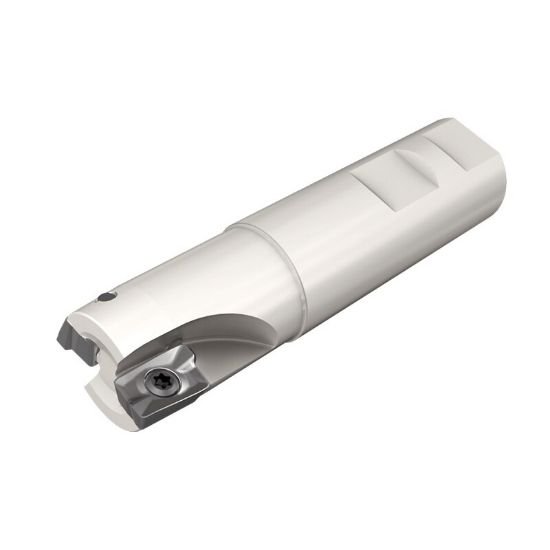

Picture of Iscar HM90 E90AD-D1.25-3-W1.25 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 3 Flute

Iscar HM90 E90AD-D1.25-3-W1.25 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 3 Flute

Part Number: ISC3101878 ISO: HM90 E90AD-D1.25-3-W1.25 ANSI:HM90 E90AD-D1.25-3-W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011852
Vendor: Sussex Tool and Supply
$406.00
ISCAR 3101878 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type External
Depth Of Cut Max 0.5600
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7002441
Cutting Edge Angle 90.0°
Max Ramp Angle 5.30°
