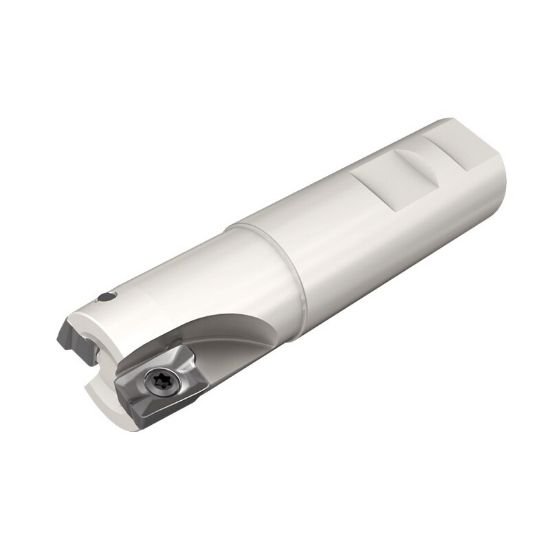

Picture of Iscar HM90 E90AD-D1.25-3-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.600 OAL 3 Flute

Iscar HM90 E90AD-D1.25-3-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.600 OAL 3 Flute

Part Number: ISC3110704 ISO: HM90 E90AD-D1.25-3-M16 ANSI:HM90 E90AD-D1.25-3-M16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012684
Vendor: Sussex Tool and Supply
$463.68

Description

ISCAR 3110704 Parallelogram 90.0°, End Mill Thread On SCREWM16 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.6000 66.04MM
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 2.5200
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 5.30°
Materials & Finish
Tool Material Steel
