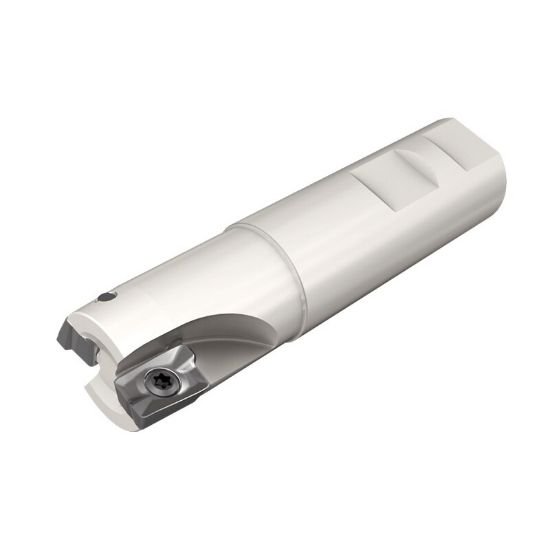

Picture of Iscar HM90 E90AD-D1.25-2-W1.25C Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

Iscar HM90 E90AD-D1.25-2-W1.25C Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 2 Flute

Part Number: ISC3101765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011832
Vendor: Sussex Tool and Supply
$0.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Max Ramp Angle 5.30°
Insert Application Roughing, Semi Finishing
Cutter Type End Mill
Cutting Edge Angle 90.0°
Depth Of Cut Max 0.5600
Overall Length 4.2500 107.95MM
Insert Size (IC) 15
Machine Side (Toolpost) WELDON1.2500
Insert Type Positive
Insert Screw 7002441
Insert Style AD
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Parallelogram
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 2
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.2500 31.75MM - 1-1/4
Cut Diameter Min 1.2500 31.75MM - 1-1/4
Coolant Thru Thru Coolant
Cut Diameter Max 1.2500 31.75MM - 1-1/4
Made In USA No
Coolant Type Through Hole
