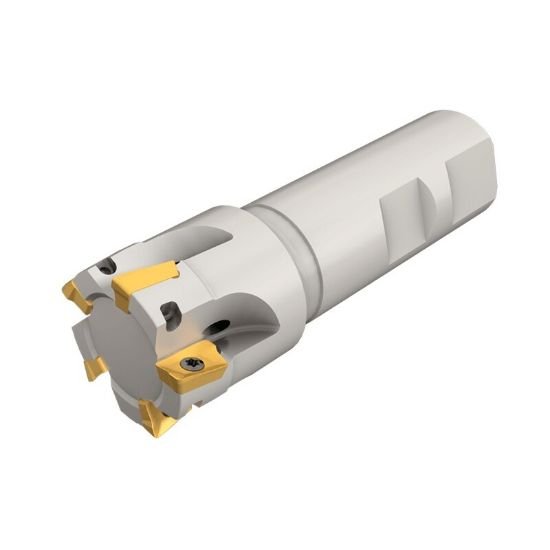

Picture of Iscar HM90 E90A-D1.50-6-W1.25 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.300 OAL 6 Flute

Iscar HM90 E90A-D1.50-6-W1.25 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.300 OAL 6 Flute

Part Number: ISC3101918 ISO: HM90 E90A-D1.50-6-W1.25 ANSI:HM90 E90A-D1.50-6-W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011859
Vendor: Sussex Tool and Supply
$488.00
ISCAR 3101918 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.3000 109.22MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 10
Cut Dia Min 1.5000 38.10MM - 1-1/2
Coolant Type External
Depth Of Cut Max 0.3940
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7002441
Cutting Edge Angle 90.0°
Max Ramp Angle 2.70°
