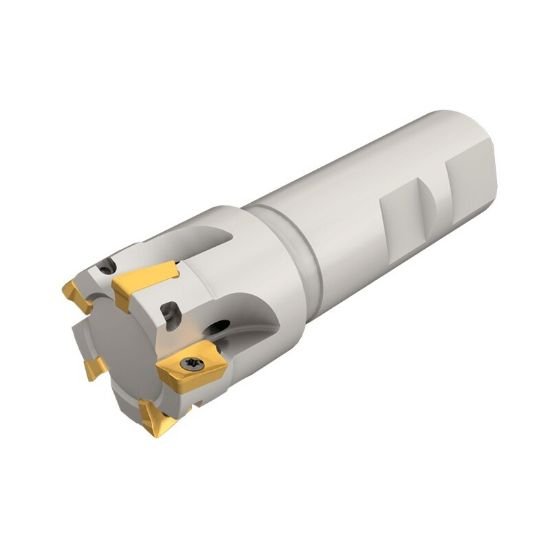

Picture of Iscar HM90 E90A-D1.25-4-C1.25-B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Iscar HM90 E90A-D1.25-4-C1.25-B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Part Number: ISC3102149 ISO: HM90 E90A-D1.25-4-C1.25-B ANSI:HM90 E90A-D1.25-4-C1.25-B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011917
Vendor: Sussex Tool and Supply
$473.00
ISCAR 3102149 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.8700 199.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 10
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type External
Depth Of Cut Max 0.3940
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7002441
Cutting Edge Angle 90.0°
Max Ramp Angle 3.00°
