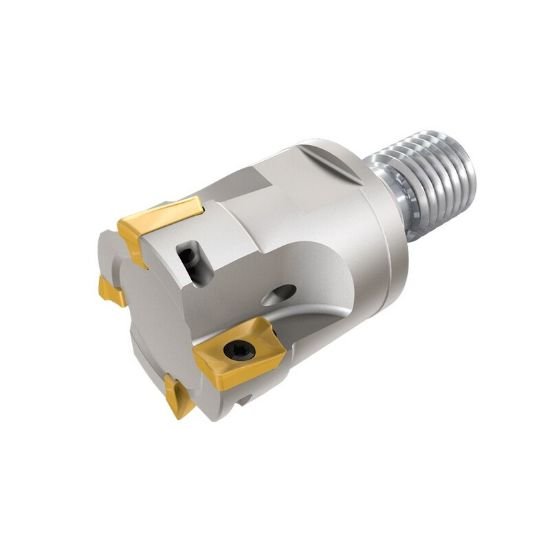

Picture of Iscar HM90 E90A-D1.00-4-M12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.240 OAL 4 Flute

Iscar HM90 E90A-D1.00-4-M12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.240 OAL 4 Flute

Part Number: ISC3110732 ISO: HM90 E90A-D1.00-4-M12 ANSI:HM90 E90A-D1.00-4-M12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012686
Vendor: Sussex Tool and Supply
$453.12

Description

ISCAR 3110732 Parallelogram 90.0°, End Mill Thread On SCREWM12 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.2400 56.90MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3940
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 2.50°
Materials & Finish
Tool Material Steel
