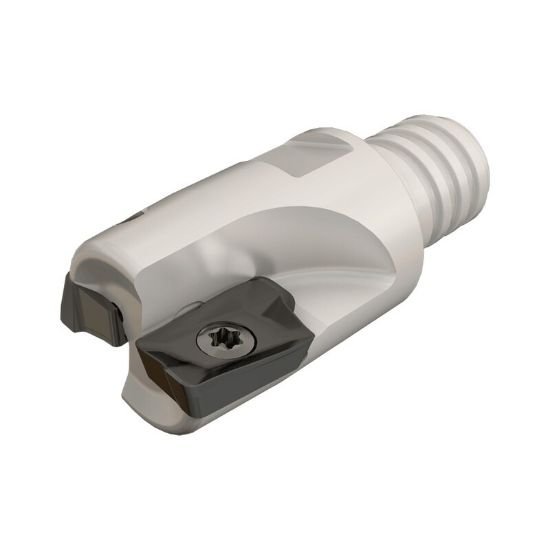

Picture of Iscar HM90 E90A-D.75-3-mmT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 3 Flute

Iscar HM90 E90A-D.75-3-mmT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 3 Flute

Part Number: ISC3104246 ISO: HM90 E90A-D.75-3-MMT12 ANSI:HM90 E90A-D.75-3-MMT12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012134
Vendor: Sussex Tool and Supply
$432.00

Description

ISCAR 3104246 Parallelogram 90.0°, End Mill Thread On T12 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002527
Dimensions & Sizing
Overall Length 1.5100 38.35MM
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3940
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 2.40°
Materials & Finish
Tool Material Steel
