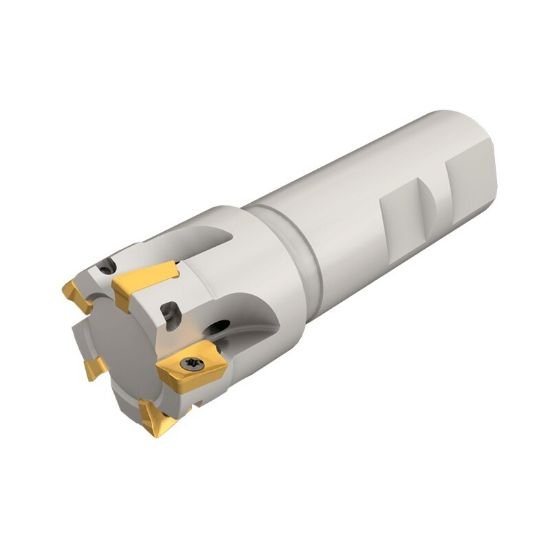

Picture of Iscar HM90 E90A-D.38-1-W.50 Milling Cutter 90.0° 0.375 Diameter Weldon 0.500 3.000 OAL 1 Flute

Iscar HM90 E90A-D.38-1-W.50 Milling Cutter 90.0° 0.375 Diameter Weldon 0.500 3.000 OAL 1 Flute

Part Number: ISC3101942 ISO: HM90 E90A-D.38-1-W.50 ANSI:HM90 E90A-D.38-1-W.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011872
Vendor: Sussex Tool and Supply
$264.00
ISCAR 3101942 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Tool Dia 0.3750 9.53MM - 3/8
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 10
Cut Dia Min 0.3750 9.53MM - 3/8
Coolant Type External
Depth Of Cut Max 0.3940
Cut Dia Max 0.3750 9.53MM - 3/8
Insert Screw 7002441
Cutting Edge Angle 90.0°
Max Ramp Angle 5.00°
