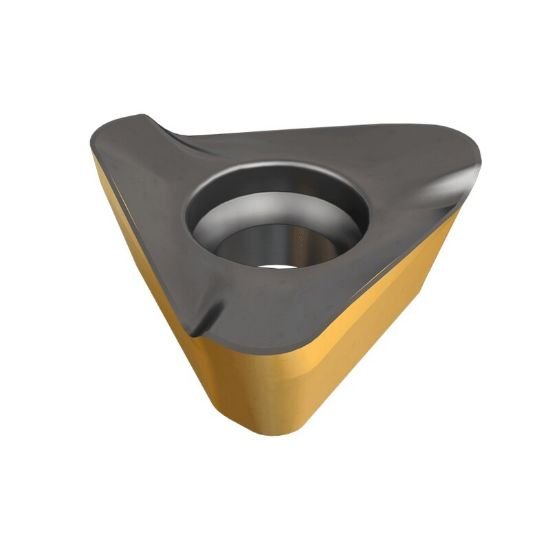

Picture of Iscar HM390TDCT1505PDR IC808 Milling Insert Triangle 0.031 Corner Radius TiAlN + AlTiN + TiN

Iscar HM390TDCT1505PDR IC808 Milling Insert Triangle 0.031 Corner Radius TiAlN + AlTiN + TiN

Part Number: ISC5607509 ISO: HM390TDCT1505PDR IC808 ANSI:HM390TDCT1505PDR IC808
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$27.69
This product has a minimum quantity of 10
SKU: 1010238

Description

ISCAR 5607509 Triangle Insert Positive TiAlN + AlTiN + TiN A tough, submicron substrate with excellent chipping resistance, combined with a "SUMO TEC" PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 15
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Depth Of Cut Max 0.4720
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + AlTiN + TiN
Grade IC808
Compatibility & Fit
Insert Fits Triangle
