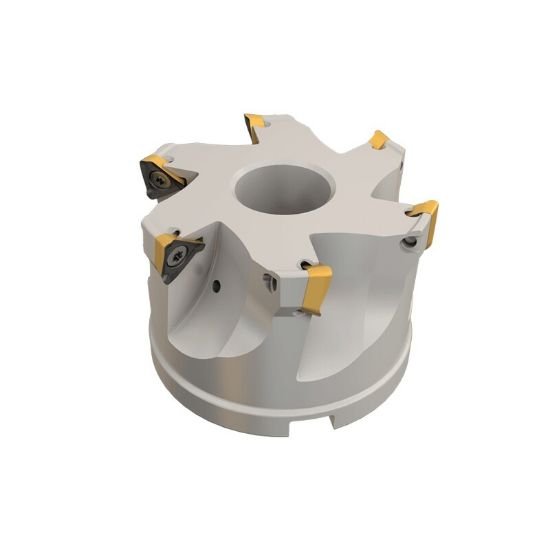

Picture of Iscar HM390 FTP D2.50-7-1.0-10 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 7 Flute

Iscar HM390 FTP D2.50-7-1.0-10 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 7 Flute

Part Number: ISC3106639 ISO: HM390 FTP D2.50-7-1.0-10 ANSI:HM390 FTP D2.50-7-1.0-10
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012528
Vendor: Sussex Tool and Supply
$838.08

Description

ISCAR 3106639 Triangle 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000219
Dimensions & Sizing
Overall Length 1.7700 44.96MM
Flutes/Inserts 7
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.3150
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
