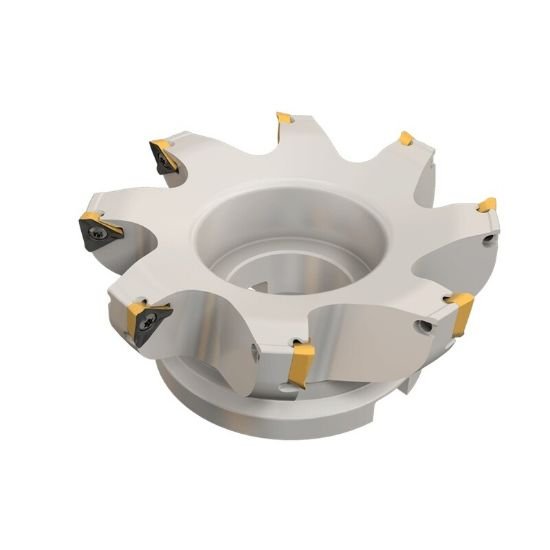

Picture of Iscar HM390 FTD D6.00-10-2.0-15 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 10 Flute

Iscar HM390 FTD D6.00-10-2.0-15 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 10 Flute

Part Number: ISC3106570 ISO: HM390 FTD D6.00-10-2.0-15 ANSI:HM390 FTD D6.00-10-2.0-15
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012492
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3106570 Triangle 90.0°, Face Mill SHELL2.0000 Positive 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 7005206
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 10
Tool Dia 6.0000 152.40MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.5120
Cut Dia Max 6.0000 152.40MM
Materials & Finish
Tool Material Steel
