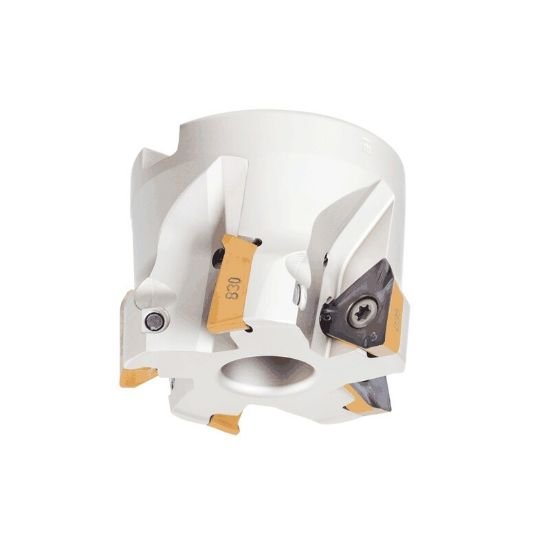

Picture of Iscar HM390 FTD D4.00-8-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Iscar HM390 FTD D4.00-8-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Part Number: ISC3107071 ISO: HM390 FTD D4.00-8-1.50-19 ANSI:HM390 FTD D4.00-8-1.50-19
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012598
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3107071 Triangle 90.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Insert Size Ic 19
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.6300
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
