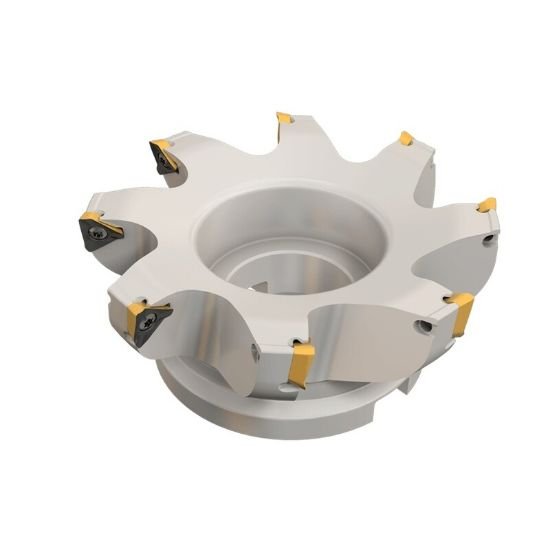

Picture of Iscar HM390 FTD D1.50-4-.50-15 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.380 OAL 4 Flute

Iscar HM390 FTD D1.50-4-.50-15 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.380 OAL 4 Flute

Part Number: ISC3106803 ISO: HM390 FTD D1.50-4-.50-15 ANSI:HM390 FTD D1.50-4-.50-15
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012555
Vendor: Sussex Tool and Supply
$561.60

Description

ISCAR 3106803 Triangle 90.0°, Face Mill SHELL0.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TD
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006993
Dimensions & Sizing
Overall Length 1.3800 35.05MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5120
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
