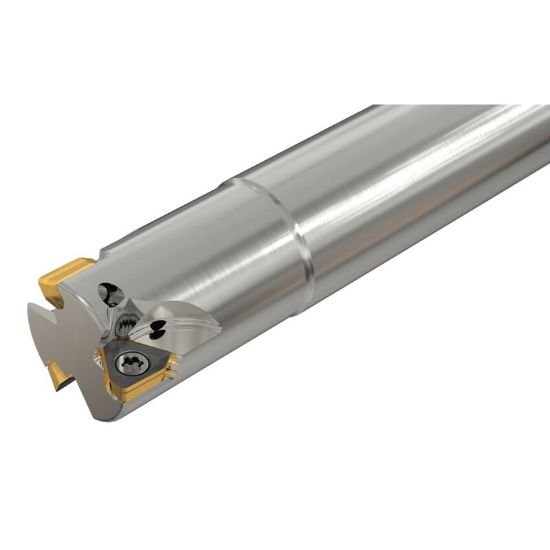

Picture of Iscar HM390 ETPD.62-04-C.62-05C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

Iscar HM390 ETPD.62-04-C.62-05C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

Part Number: ISC3346004 ISO: HM390 ETPD.62-04-C.62-05C ANSI:HM390 ETPD.62-04-C.62-05C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012929
Vendor: Sussex Tool and Supply
$387.84

Description

ISCAR 3346004 Triangle 90.0°, End Mill End Mill Cylindrical 0.6250 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 3348063
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.1380
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
