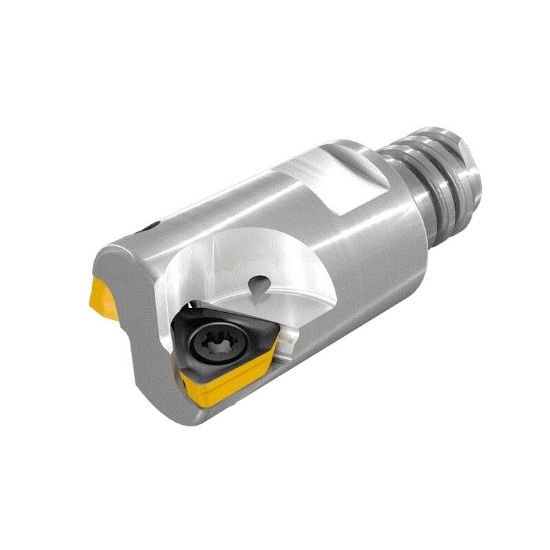

Picture of Iscar HM390 ETPD.50-03-mmT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.950 OAL 3 Flute

Iscar HM390 ETPD.50-03-mmT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.950 OAL 3 Flute

Part Number: ISC3350633 ISO: HM390 ETPD.50-03-MMT08-05 ANSI:HM390 ETPD.50-03-MMT08-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012943
Vendor: Sussex Tool and Supply
$366.72

Description

ISCAR 3350633 Triangle 90.0°, End Mill Thread On T08 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 3323647
Dimensions & Sizing
Overall Length 0.9500 24.13MM
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1380
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
