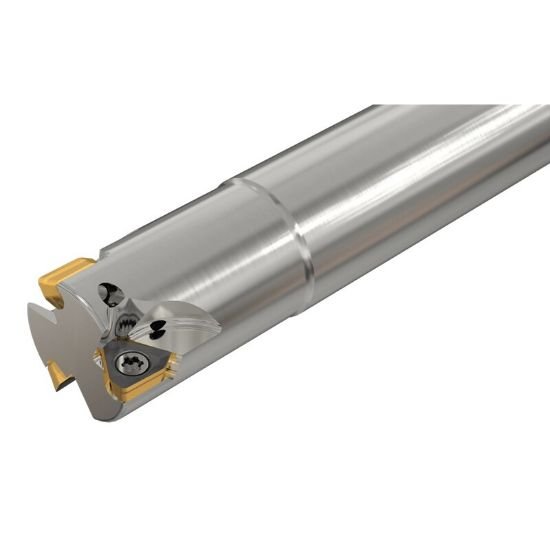

Picture of Iscar HM390 ETPD.50-03-C.50-05C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

Iscar HM390 ETPD.50-03-C.50-05C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

Part Number: ISC3346003 ISO: HM390 ETPD.50-03-C.50-05C ANSI:HM390 ETPD.50-03-C.50-05C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012928
Vendor: Sussex Tool and Supply
$328.50
ISCAR 3346003 Triangle 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size Ic 5
Cut Dia Min 0.5000 12.70MM - 1/2
Coolant Type External
Depth Of Cut Max 0.1380
Cut Dia Max 0.5000 12.70MM - 1/2
Insert Screw 7006178
Cutting Edge Angle 90.0°
Max Ramp Angle 1.50°
