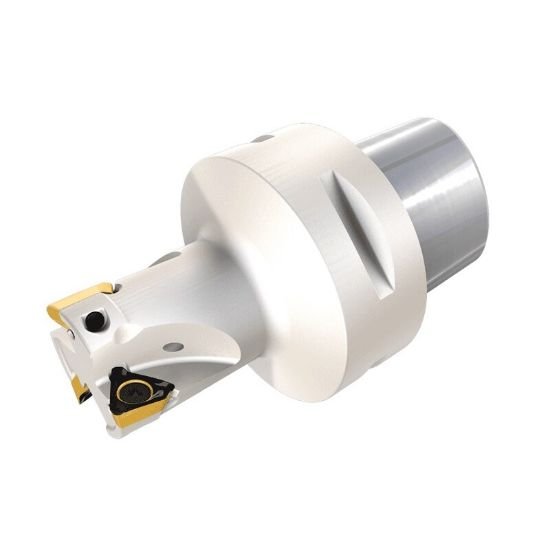

Picture of Iscar HM390 ETP D66-7-L52-C6-10 Milling Cutter 90.0° 2.598 Diameter PSC "Capto Type" 2.362 4.449 OAL 7 Flute

Iscar HM390 ETP D66-7-L52-C6-10 Milling Cutter 90.0° 2.598 Diameter PSC "Capto Type" 2.362 4.449 OAL 7 Flute

Part Number: ISC3139872 ISO: HM390 ETP D66-7-L52-C6-10 ANSI:HM390 ETP D66-7-L52-C6-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012734
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3139872 Triangle 90.0°, End Mill Quick Change CAPTO6 Positive 2.5980 65.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002353
Dimensions & Sizing
Overall Length 4.4488 113.00MM
Shank/Pilot Dia 2.3622 60.00MM
Flutes/Inserts 7
Tool Dia 2.5980 65.99MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5980 65.99MM
Depth Of Cut Max 0.3150
Cut Dia Max 2.5980 65.99MM
Max Ramp Angle 0.80°
Materials & Finish
Tool Material Steel
