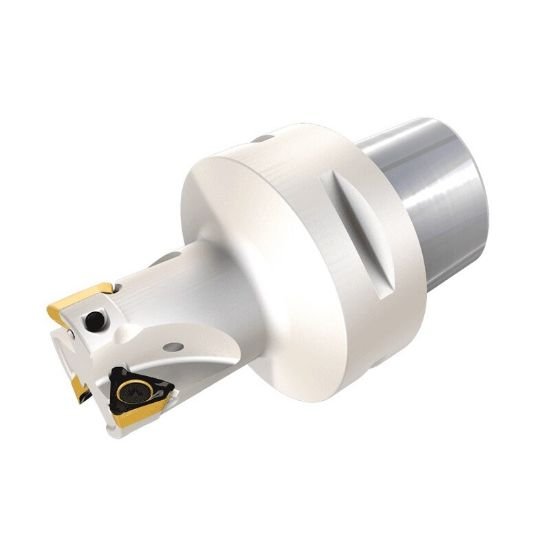

Picture of Iscar HM390 ETP D36-4-L39-C3 10 Milling Cutter 90.0° 1.417 Diameter PSC "Capto Type" 1.181 2.913 OAL 4 Flute

Iscar HM390 ETP D36-4-L39-C3 10 Milling Cutter 90.0° 1.417 Diameter PSC "Capto Type" 1.181 2.913 OAL 4 Flute

Part Number: ISC3139869 ISO: HM390 ETP D36-4-L39-C3 10 ANSI:HM390 ETP D36-4-L39-C3 10
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012733

Description

ISCAR 3139869 Triangle 90.0°, End Mill Quick Change CAPTO3 Positive 1.4170 35.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002353
Dimensions & Sizing
Overall Length 2.9130 73.99MM
Shank/Pilot Dia 1.1811 30.00MM
Flutes/Inserts 4
Tool Dia 1.4170 35.99MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.4170 35.99MM
Depth Of Cut Max 0.9450
Cut Dia Max 1.4170 35.99MM
Max Ramp Angle 1.70°
Materials & Finish
Tool Material Steel
