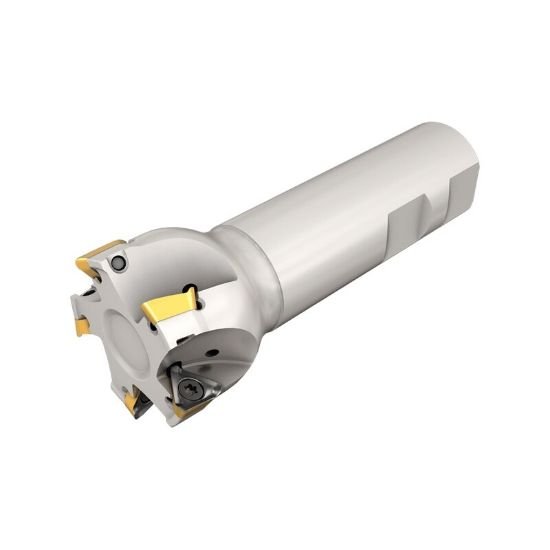

Picture of Iscar HM390 ETP D1.25-4-C1.25-B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Iscar HM390 ETP D1.25-4-C1.25-B Milling Cutter 90.0° 1.250 Diameter Round 1.250 7.870 OAL 4 Flute

Part Number: ISC3106630 ISO: HM390 ETP D1.25-4-C1.25-B ANSI:HM390 ETP D1.25-4-C1.25-B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012520
Vendor: Sussex Tool and Supply
$546.24

Description

ISCAR 3106630 Triangle 90.0°, End Mill End Mill Cylindrical 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002353
Dimensions & Sizing
Overall Length 7.8700 199.90MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3150
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 2.10°
Materials & Finish
Tool Material Steel
