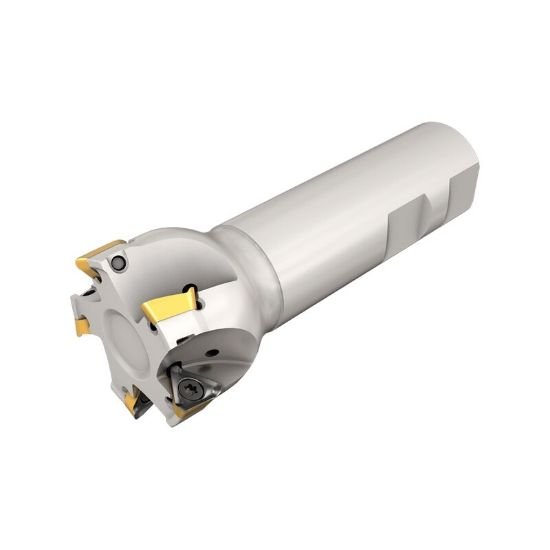

Picture of Iscar HM390 ETP D1.00-3-C1.0-B Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.870 OAL 3 Flute

Iscar HM390 ETP D1.00-3-C1.0-B Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.870 OAL 3 Flute

Part Number: ISC3106626 ISO: HM390 ETP D1.00-3-C1.0-B ANSI:HM390 ETP D1.00-3-C1.0-B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012516
Vendor: Sussex Tool and Supply
$472.32

Description

ISCAR 3106626 Triangle 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002353
Dimensions & Sizing
Overall Length 7.8700 199.90MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 2.90°
Materials & Finish
Tool Material Steel
