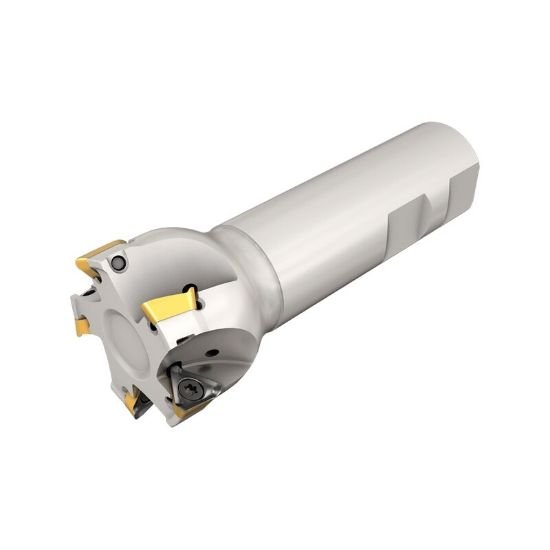

Picture of Iscar HM390 ETP D1.00-2-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

Iscar HM390 ETP D1.00-2-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

Part Number: ISC3106625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012515
Vendor: Sussex Tool and Supply
$409.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type End Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 3.7500 95.25MM
Shank Or Pilot Diameter 1.0000 25.40MM
Coolant Thru Thru Coolant
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 2
Type of Tool End Mill
Insert Or Tool Tool
Insert Application Roughing, Semi Finishing
Insert Style TP
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 10
Cut Diameter Min 1.0000 25.40MM
Depth Of Cut Max 0.3150
Coolant Type Through Hole
Cut Diameter Max 1.0000 25.40MM
Cutting Edge Angle 90.0°
Insert Screw 7002353
Max Ramp Angle 2.90°
