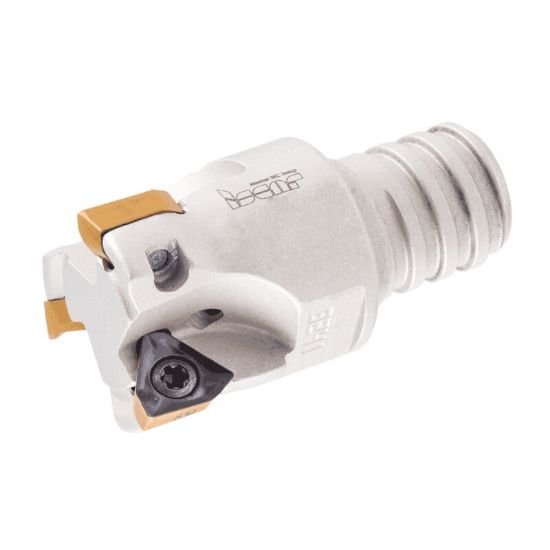

Picture of Iscar HM390 ETP-D1.0-3-mmT15-10 Milling Cutter 90.0° 1.000 Diameter Screw On T15 1.770 OAL 3 Flute

Iscar HM390 ETP-D1.0-3-mmT15-10 Milling Cutter 90.0° 1.000 Diameter Screw On T15 1.770 OAL 3 Flute

Part Number: ISC3107045 ISO: HM390 ETP-D1.0-3-MMT15-10 ANSI:HM390 ETP-D1.0-3-MMT15-10
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012592
Vendor: Sussex Tool and Supply
$452.16

Description

ISCAR 3107045 Triangle 90.0°, End Mill Thread On T15 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 1.7700 44.96MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
