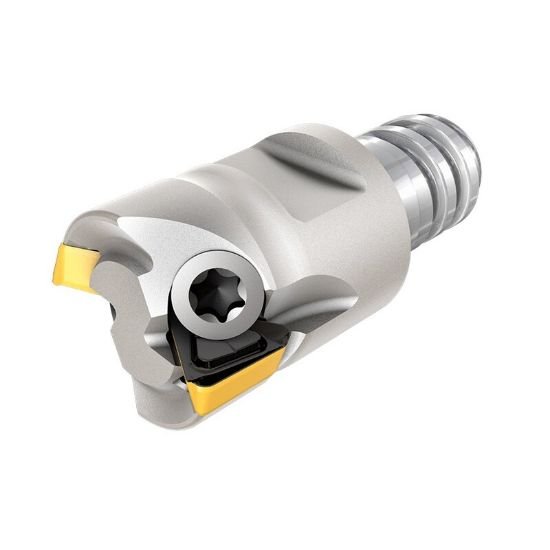

Picture of Iscar HM390 ETP D.38-3-mmT06-04 Milling Cutter 90.0° 0.375 Diameter Screw On T06 0.740 OAL 3 Flute

Iscar HM390 ETP D.38-3-mmT06-04 Milling Cutter 90.0° 0.375 Diameter Screw On T06 0.740 OAL 3 Flute

Part Number: ISC3350631 ISO: HM390 ETP D.38-3-MMT06-04 ANSI:HM390 ETP D.38-3-MMT06-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012942
Vendor: Sussex Tool and Supply
$361.92

Description

ISCAR 3350631 Triangle 90.0°, End Mill Thread On T06 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 3323647
Dimensions & Sizing
Overall Length 0.7400 18.80MM
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Insert Size Ic 4
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Depth Of Cut Max 0.1200
Cut Dia Max 0.3750 9.53MM - 3/8
Max Ramp Angle 2.50°
Materials & Finish
Tool Material Steel
