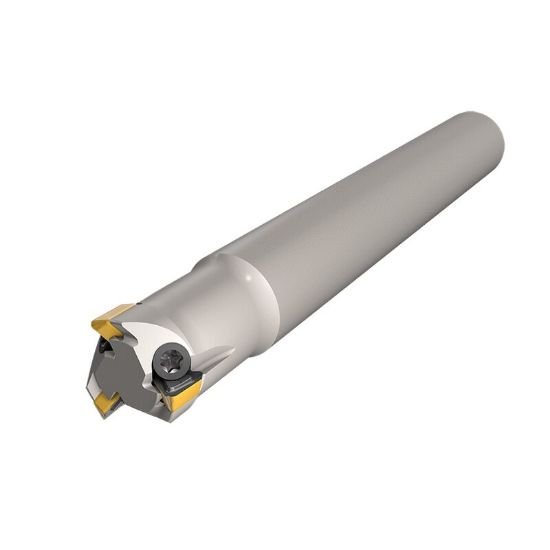

Picture of Iscar HM390 ETP D.38-3-C.38-04 Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 3 Flute

Iscar HM390 ETP D.38-3-C.38-04 Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 3 Flute

Part Number: ISC3343208 ISO: HM390 ETP D.38-3-C.38-04 ANSI:HM390 ETP D.38-3-C.38-04
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$344.64
SKU: 1012913

Description

ISCAR 3343208 Triangle 90.0°, End Mill End Mill Cylindrical 0.3750 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Inter/Extern External
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Insert Size Ic 4
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Depth Of Cut Max 0.1200
Cut Dia Max 0.3750 9.53MM - 3/8
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
