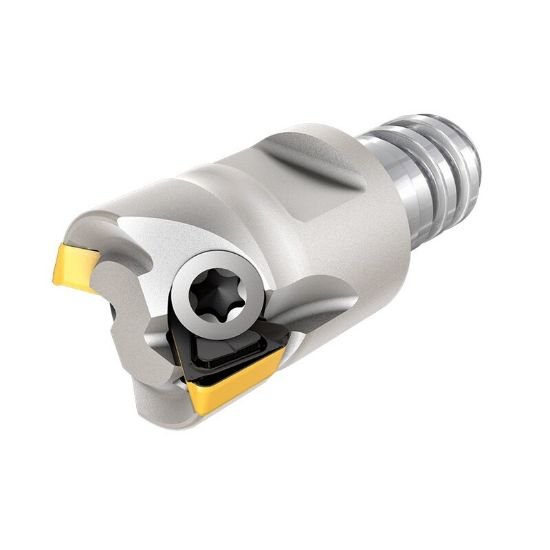

Picture of Iscar HM390 ETP D.31-2-mmT05-04 Milling Cutter 90.0° 0.313 Diameter Screw On T05 0.850 OAL 2 Flute

Iscar HM390 ETP D.31-2-mmT05-04 Milling Cutter 90.0° 0.313 Diameter Screw On T05 0.850 OAL 2 Flute

Part Number: ISC3350630 ISO: HM390 ETP D.31-2-MMT05-04 ANSI:HM390 ETP D.31-2-MMT05-04
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$330.24
SKU: 1012941

Description

ISCAR 3350630 Triangle 90.0°, End Mill Thread On T05 Positive 0.3130 7.95MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 3323647
Dimensions & Sizing
Overall Length 0.8500 21.59MM
Flutes/Inserts 2
Tool Dia 0.3130 7.95MM
Insert Size Ic 4
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3130 7.95MM
Depth Of Cut Max 0.1200
Cut Dia Max 0.3130 7.95MM
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
